Manufacturer: HOSOKAWA ALPINE
Number of layers: 5 LAYER BARRIER LINE
Material: PE-LD,PE-LLD, PA AND EVOH.
Film Width: 1300MM
Output (Kg/h) :350KG
Extruder 1 Layer ref: A
Screw diam: 65
Extruder 2 Layer ref: B
Screw diam: 50
Extruder 3 Layer ref: C
Screw diam: 50
Extruder 4 Layer ref: D
Screw diam:50
Extruder 5 Layer ref: E
Screw diam:65
Head description: ALPINE
Die diam (mm) 160MM – 400MM
Bubble cage: With Ultrasonic Bubble Diameter Control Unit

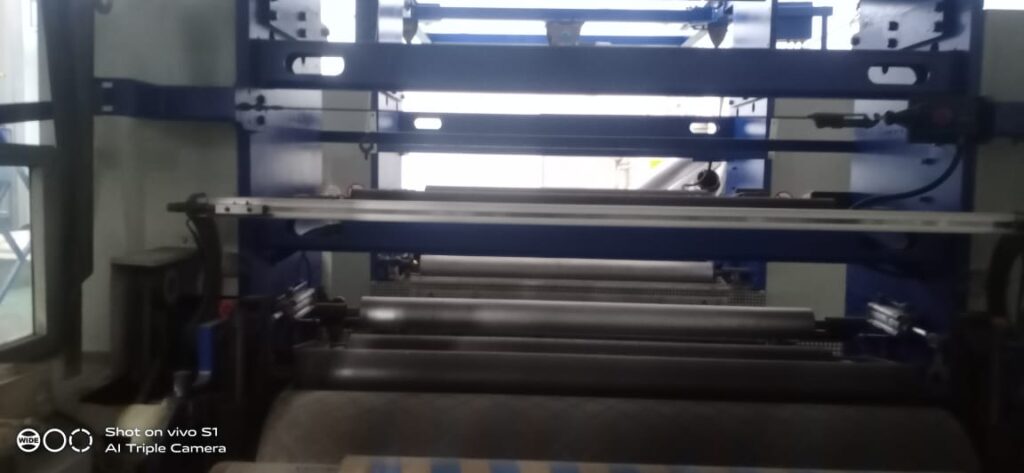

Take off unit: Oscillating 1400 mm wide
Corona treatment: outside SOFITAL
Web guide: ALPINE
Rewinder Type: Double back to back
Rewinder max reel diameter: 1000MM
Additional information
- PMS C-SCAN SENSOR – PLAST CONTROL
- POS SOFTWARE – ALPINE

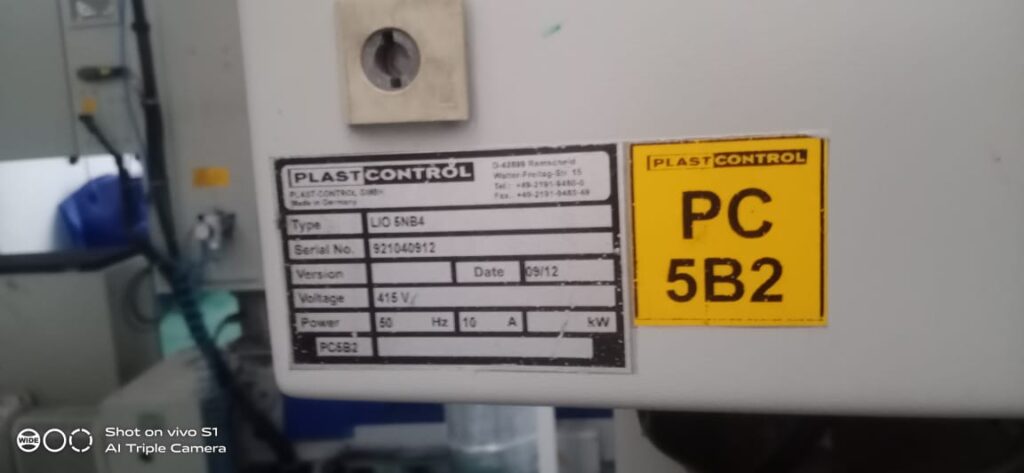

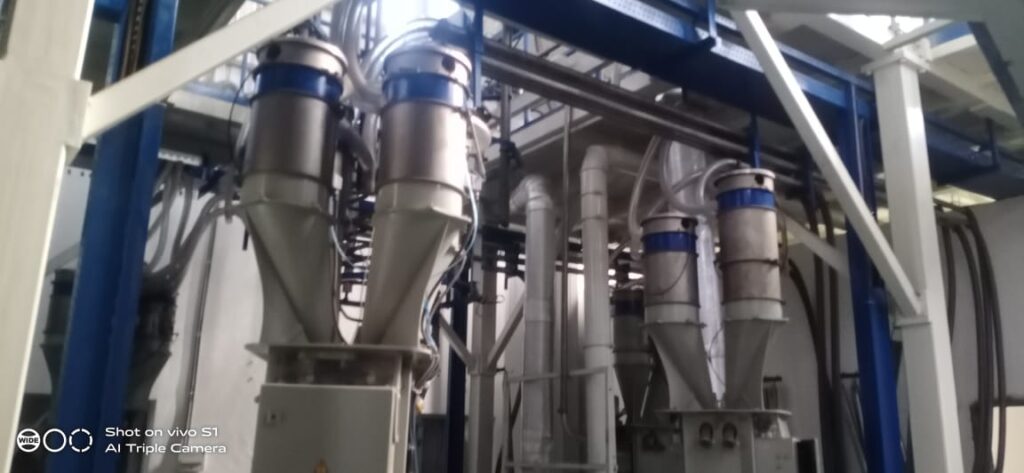

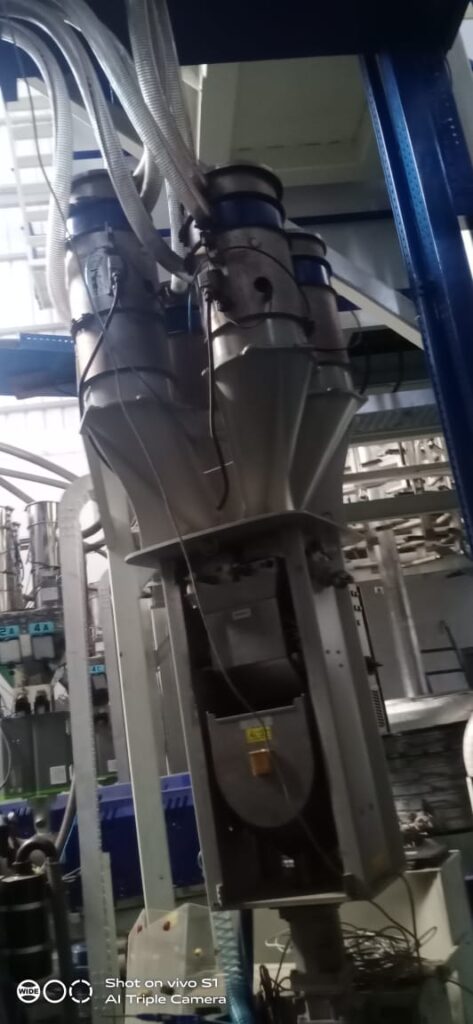

- DOSING SYSTEM BY PLAST CONTROL
- COOLING RING CRP
